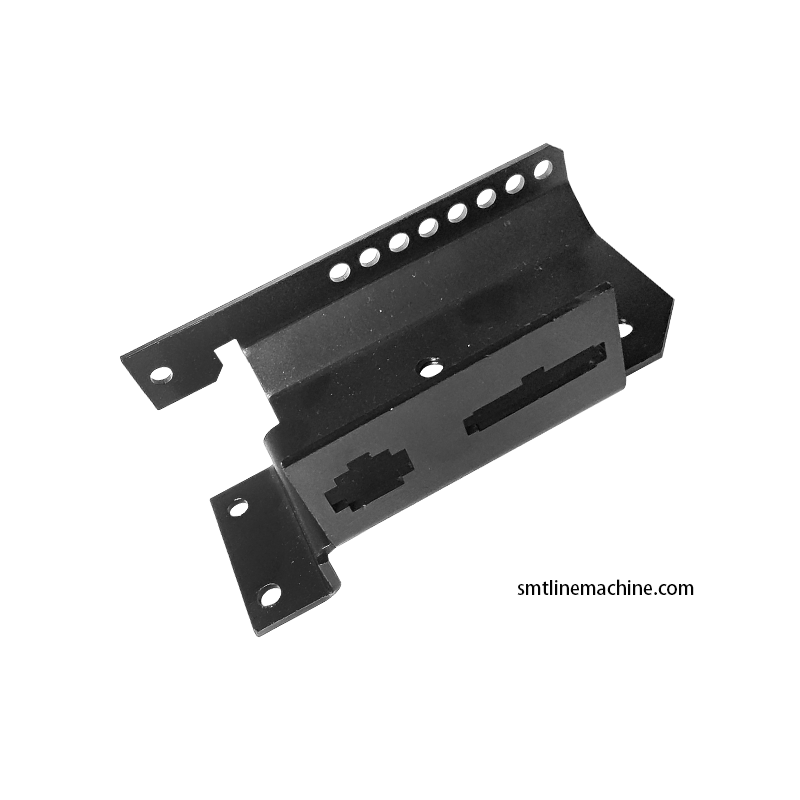

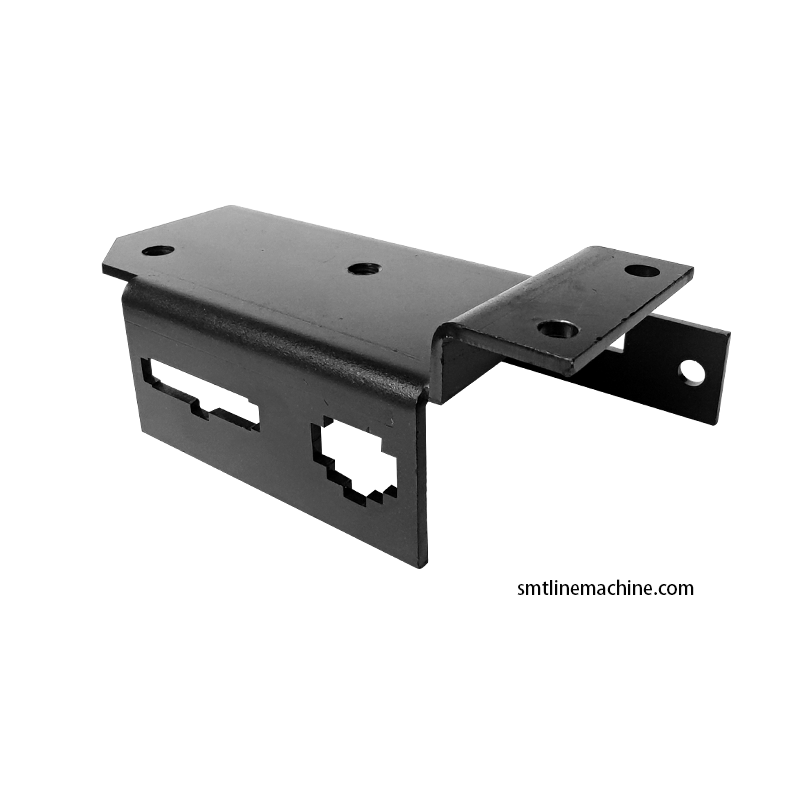

YAMAHA KGB-M71W2-00X KV8-M71W3-00X YV100XG X Axis Cable Chain Bracket
-
Resaltar
YAMAHA YV100XG X Axis cable bracket
,YAMAHA KV8-M71W3 cable chain bracket
,YAMAHA KGB-M71W2 cable bracket spare
-
Lugar de origenJAPÓN
-
Nombre de la marcaYAMAHA
-
CertificaciónCE-KGB-M71W2-00X
-
Número de modeloKGB-M71W2-00X
-
Cantidad de orden mínimaTambién se acepta 1 juego de máquina o pedido mixto Transporte: a granel o en contenedores
-
PrecioNegociable
-
Detalles de empaquetadoLas cajas de exportación estándar y los paquetes resistentes de madera son opciones
-
Tiempo de entrega1-2 días laborables
-
Condiciones de pagoLC, D/A, D/P, T/T, Western Union, MoneyGram
YAMAHA KGB-M71W2-00X KV8-M71W3-00X YV100XG X Axis Cable Chain Bracket
YAMAHA KGB-M71W2-00X KV8-M71W3-00X YV100XG X Axis Cable Chain Bracket
This X-axis cable chain bracket is a critical component of the YAMAHA pick-and-place machine cable protection system, specifically engineered for the X-axis motion unit of YV100XG models. It securely fixes and guides the X-axis cable carrier (tank chain), effectively protecting internal cables and air tubes from wear, tangling, or stress concentration during high-speed reciprocating motion.
Technical Specifications
| Part Number | KGB-M71W2-00X/KV8-M71W3-00X |
|---|---|
| Product Name | YAMAHA YV100XG X Axis Cable Chain Bracket |
| Applicable Equipment | YAMAHA YV100XG/YV100X series SMT pick and place machines |
| Brand | YAMAHA |
| Supplier | CNSMT |
| Condition | Brand New |
Function & Purpose
- Cable Management: Secure signal cables, power cables, and air hoses within the X-axis cable carrier to prevent motion interference
- Motion Guidance: Work with the cable carrier to move smoothly within the X-axis travel range, reducing cable bending fatigue
- Wear Protection: Prevent direct contact between cables and equipment panels to lower the risk of insulation damage caused by friction
- Maintenance and Replacement: Serve as a supporting bracket for standard replacement when the cable carrier or cables age and need to be replaced, restoring equipment operating accuracy
Core Functions
- Precision Fixed X-axis Cable Carrier: Designed strictly according to the YV100XG equipment structure, precisely matching the travel of the X-axis guide rail
- Ensuring Cable Bending Lifespan: By guiding the cable carrier to bend smoothly, it prevents internal cables from reaching their maximum bending radius, thereby extending their service life
- Original Factory Parameter Compatibility: Using materials and hole position parameters consistent with the original factory, enabling seamless replacement and installation without requiring secondary processing
- Reducing Equipment Downtime Risk: Effectively preventing abnormal mounting alarms caused by cable breakage or signal interference, thus improving overall equipment effectiveness (OEE)
Original YAMAHA KGB-M71W2-00X / KV8-M71W3-00X X-axis cable duct bracket for YV100XG mounters. Manufactured to original factory specifications, specifically designed for fixing and guiding the X-axis cable drag chain on YV100XG/YV100X series placement machines. Effectively manages cable movement paths, preventing wear and interference during high-speed reciprocating motion. Ideal for mounter cable duct maintenance, cable system upgrades, or spare parts stocking—enhances equipment stability and cable service life. In stock with fast global delivery.
